BRAND: RUDIA




Description

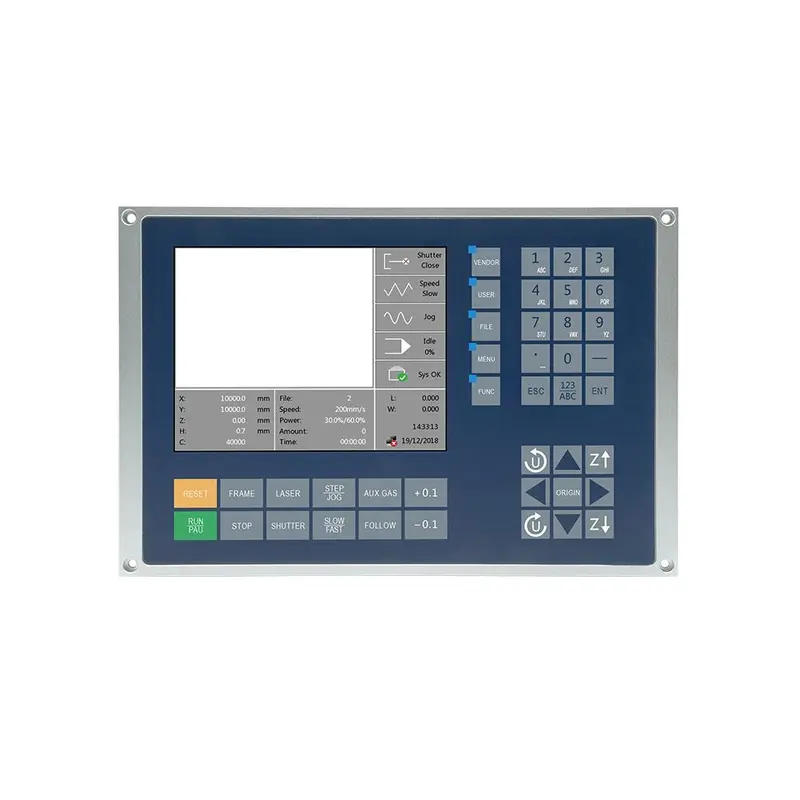

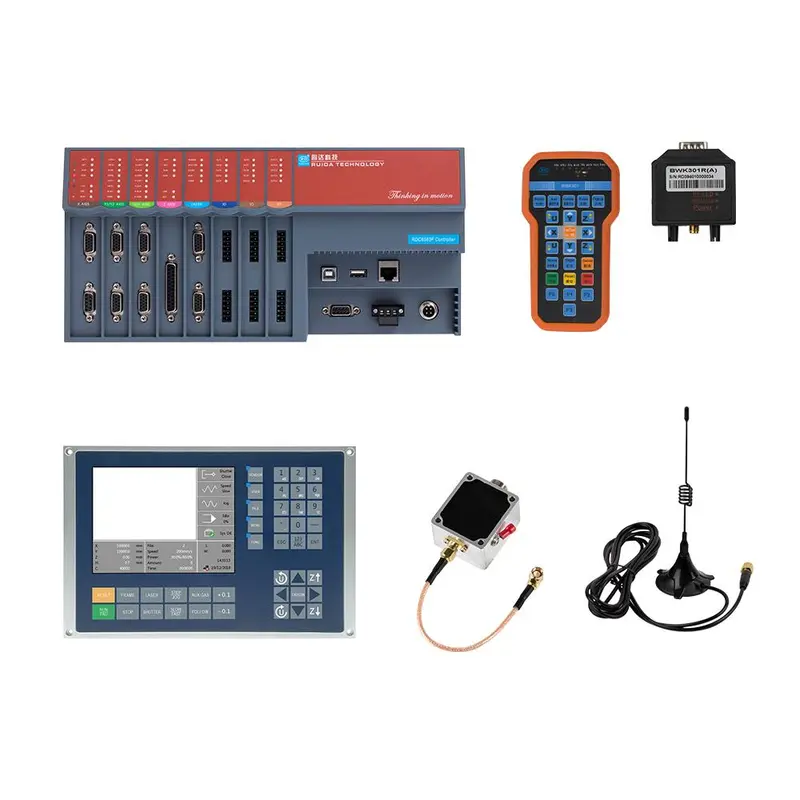

    Cloudray Rudia RDC6563F Fiber Laser Cutting Control System

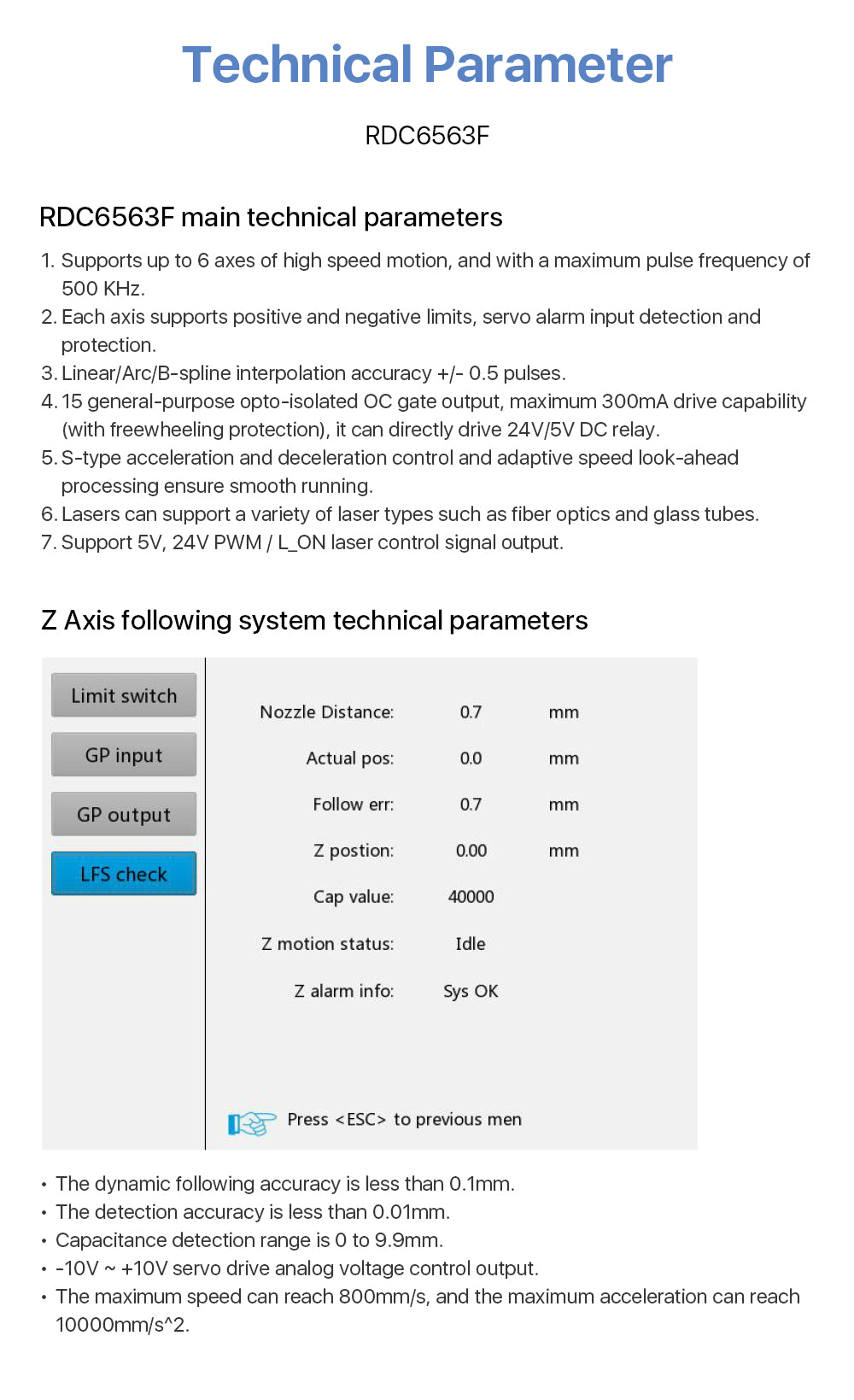

Product Features

1. Achieve high-speed motion and response speeds of servo motors or stepper motors.

2. Support leapfrog, flight cutting, short-distance without lifting

3. Support automatic feeding, AB switching movement functions.

 4. Capacitor parameter auto-calibration can be achieved to match any cutting head.

5. Support different lifting height and speed settings to facilitate different ways of cutting

6. Supports a variety of punching methods such as segmental punching, progressive punching, and pulse punching.

7. Optimized gas control, effective reduction of gas loss, 3-way gas control output.

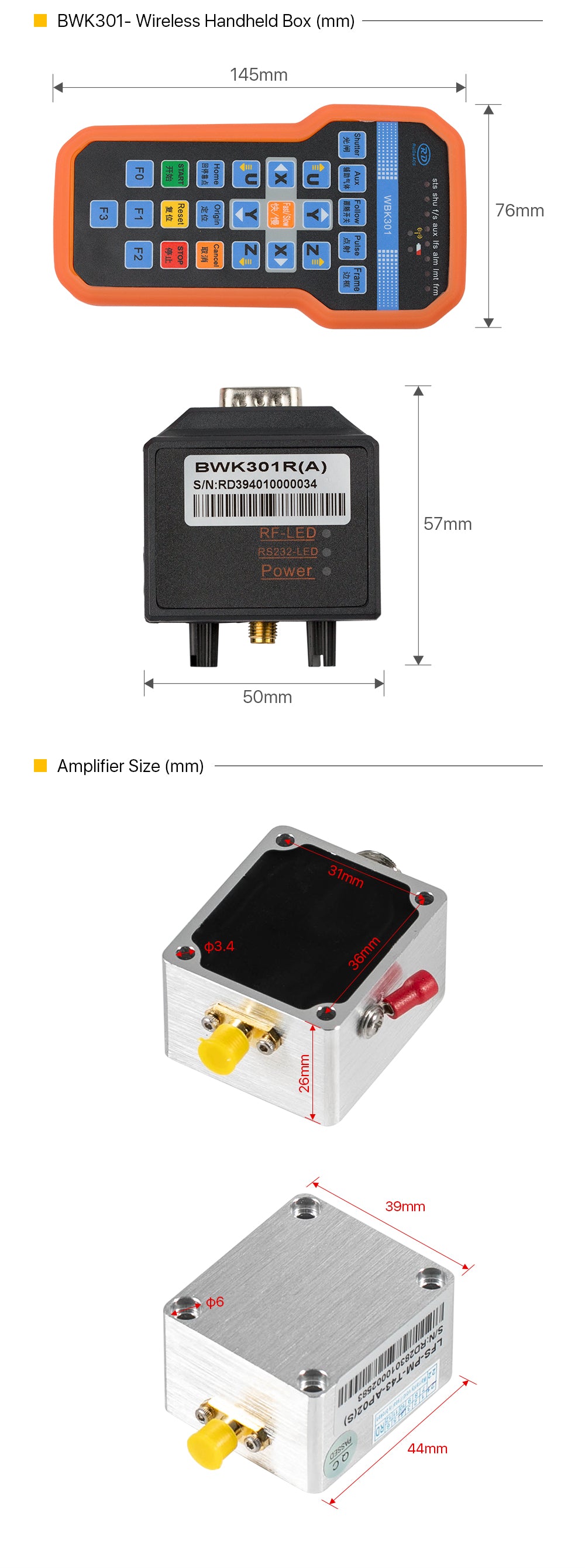

8. Support remote control of wireless controller, USB, Ethernet.

Rudia RDC6563F Fiber Laser ControllerRudia RDC6563F Fiber Laser ControllerRudia RDC6563F Fiber Laser ControllerRudia RDC6563F Fiber Laser ControllerRudia RDC6563F Fiber Laser ControllerRudia RDC6563F Fiber Laser Controller
