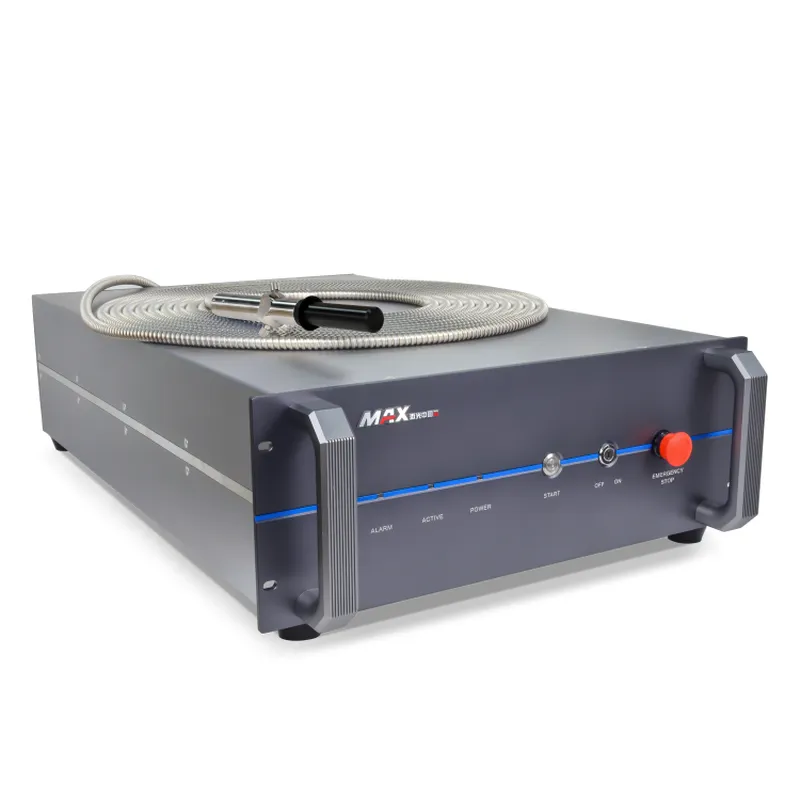

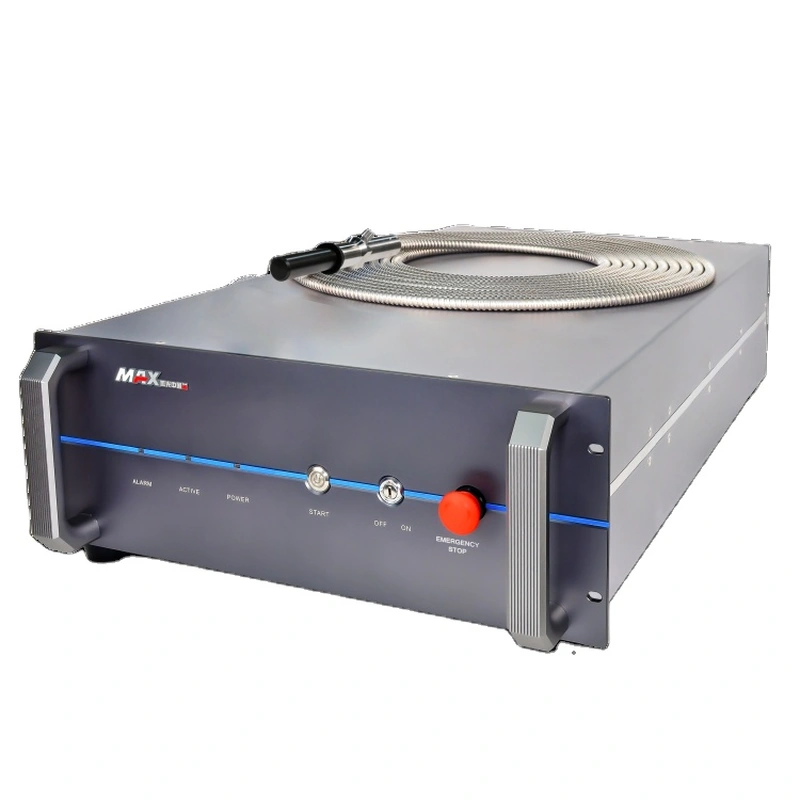

MAX SINGLE MODULE CW FIBER LASER SOURCE

BRAND: MAX

PRODUCT TYPE:  FIBER LASER

POWER: 700W / 1000W /1500W

Description

Product Description

Maxphotonics Quality Choice Good Beam Quality 1500 Watt Fiber Laser


 MAX MFSC Series
MFSC single-mode continuous fiber laser adopts modular design, highly integrated system, maintenance-free and high reliability. The laser power is continuously adjustable, with high beam quality and high laser stability. It is an ideal laser source for laser fine cutting, precision welding and other applications. Using optical fiber with QBH head output, it can be used with laser processing heads, galvanometers, etc. to integrate with robots, machine tools, etc., and is widely used in 3C, hardware, medical, automotive, aviation and other fields.
Product Paramenters
Models
MFSC-1000X
MFSC-1500X
Optical Specification
Nominal Power
1000W
1500W
Mode of Operation
CW/Modulated
 Polarization
Random
Power Tunability
10 to 100%
Wavelength
1080 ± 10 nm
Power Stability
±1 %
Laser Beam Quality, BBP
≤1.5 mm x mrad (50μm QBH)
Modulation Frequency
≤20 kHz
Preview Red Light Power
150 μW

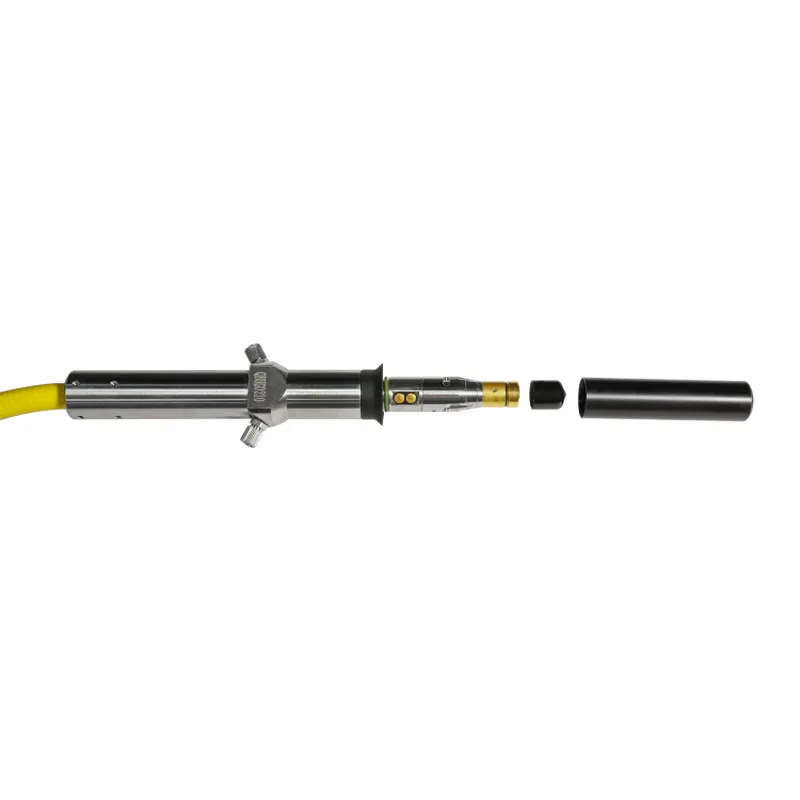

Fiber Delivery System
Interface
QBH (LOC)
Length
15m standard, other lengths optional
Diameter
50 (25) μm
50 (35) μm
Bending Radius
200 mm
Electrical Ratings
Supply Voltage
220VAC (-15% to +10%) Single-phase
Other Specifications
Operating Temperature
+10 to +40℃
Storage Temperature
-10 to +60℃
Humidity
10 to 85%
Cooling Method
Water Cooling
Cooling Medium
Distilled water/ Glycol Antifreeze
Dimension
482.6×800×193mm (W×D×H)
Weight
53(±3) kg
57(±3) kg

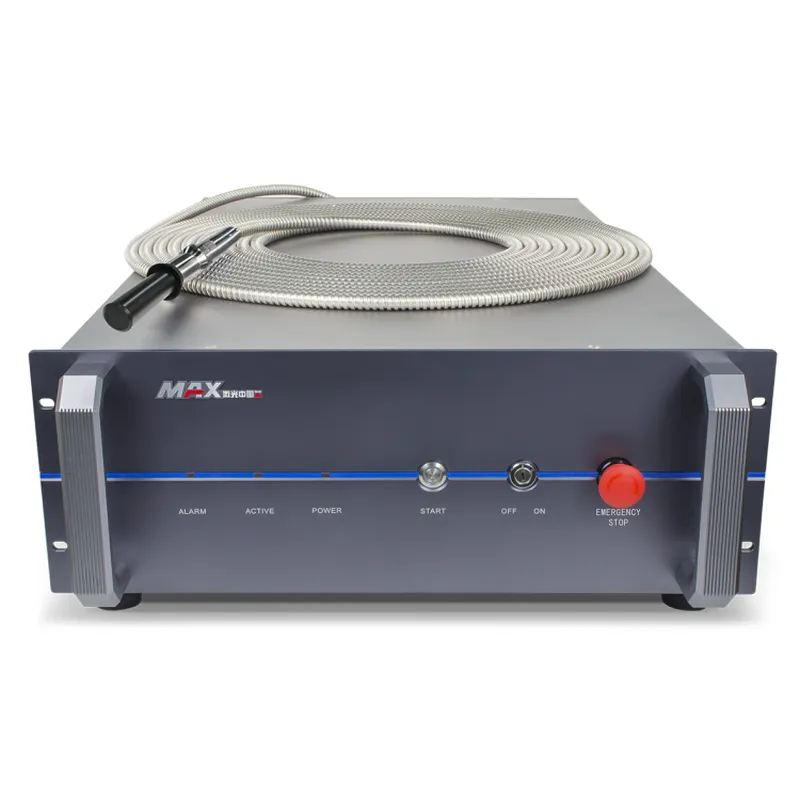

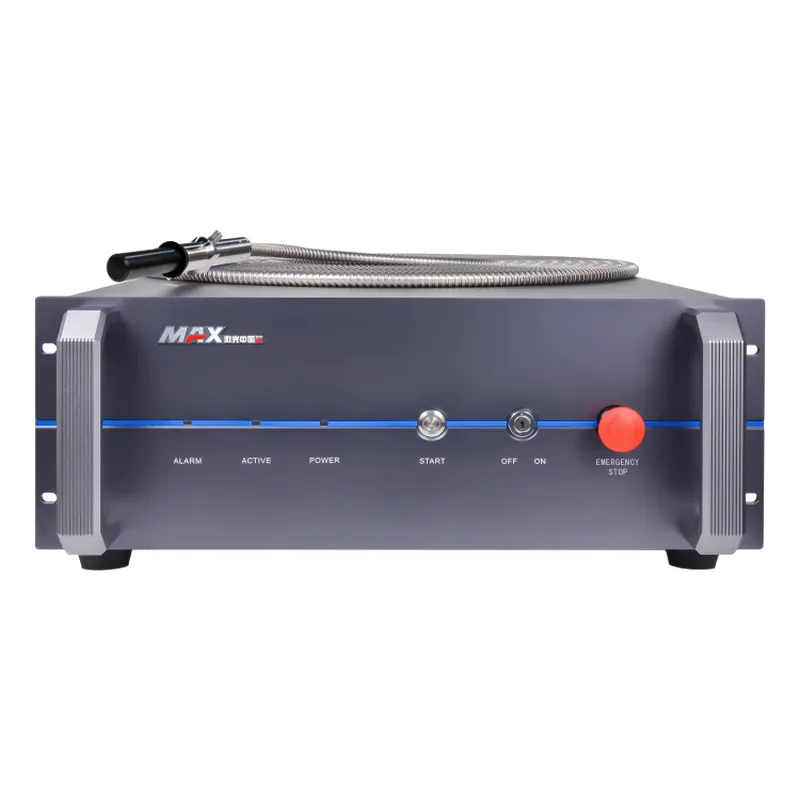

Front Panel Description
ITEMS
FUNCTION DESCRIPTION
(OFF ON) Key Switch
Power switch of laser
(EMERGENCY STOP) Emergency Stop Switch
Emergency stop
(START) Start Switch
Start laser (on-off signal of hardware)
ALARM
Abnormal situation light of laser
ACTIVE
Normal situation light of laser
POWER
Power light of laser

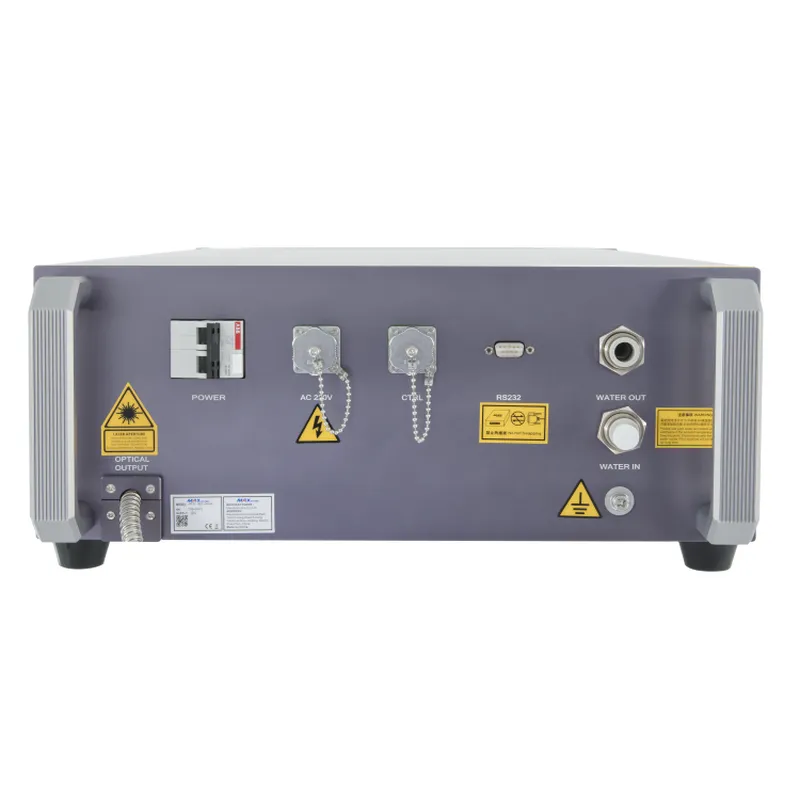

Back Panel Description


ITEMS
FUNCTION DESCRIPTION
CTRL
External control connector
RS232
RS232 connector(Equipped with some models)
AC220
220VAC power input
POWER
220V AC switch
WATER OUT
Water cooling output port
WATER IN
Water cooling input port
OPTICAL OUTPUT
Laser output connector
ETHERNET
Ethernet port (available on some models)
