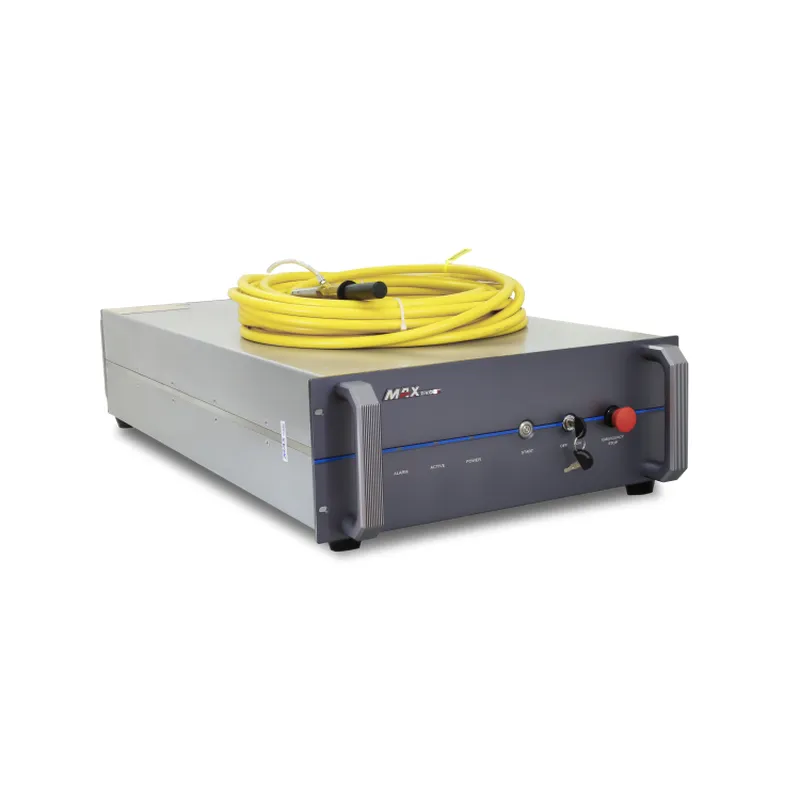

MAX 2KW,3KW SINGLE MODULE CW FIBER LASER SOURCE

Product Description

Maxphotonics Wholesale Price More Reliable Optical Laser Source

Models	MFSC-2000W	MFSC-3000W
OPTICAL SPECIFICATIONS
Nominal Power	2000W	3000W
Mode of Operation	CW/Modulated
Polarization	Random
Power Tunability	10 to 100%
Wavelength	1080 ± 10 nm
Power Stability	±1 %
Laser Beam Quality, BPP	1.1 to 1.5 mm x mrad (50μm QBH)
	2.8 to 3.6 mm x mrad (100μm QBH)
Modulation Frequency	≤5 KHz
Preview Red Light Power	200 μW
FIBER DELIVERY SYSTEM
Interface	QBH (LOC)
Length	15m standard, other lengths optional	20m standard, other lengths optional
Diameter	50(100/200) μm
Bending Radius	200 mm
ELECTRICAL RATINGS
Supply Voltage	400VAC (-15% to +10%) 3-phase
OTHER SPECIFICATIONS
Operating Temperature	+10 to +40℃
Storage Temperature	-10 to +60℃
Humidity	10 to 85%
Cooling Method	Water Cooling
Cooling Medium	Distilled water/ Glycol Antifreeze
Dimension	482.6×950×193 mm
Weight	72(±3) kg	80(±3) kg

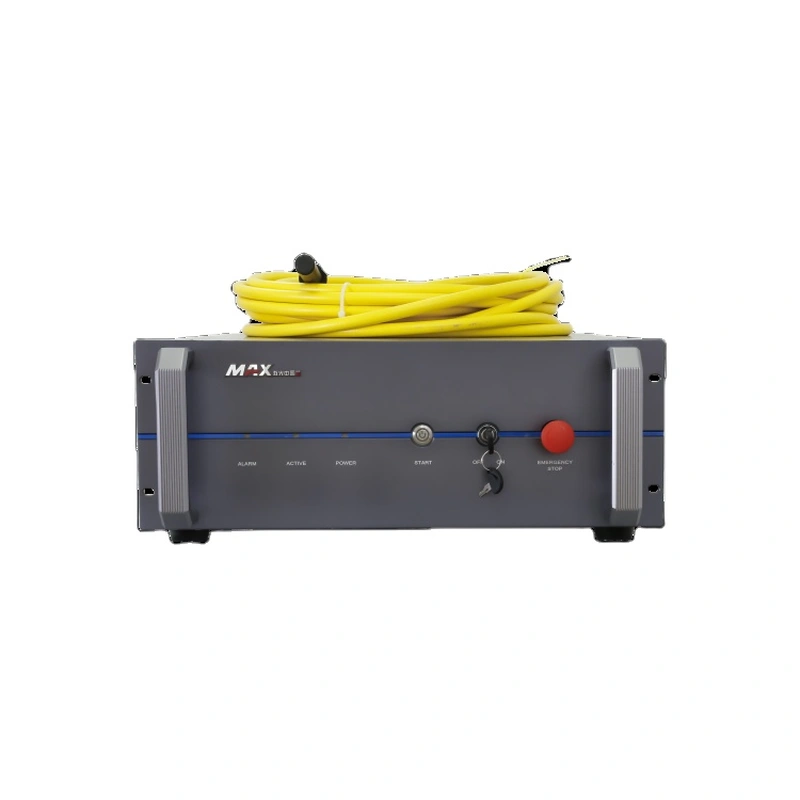

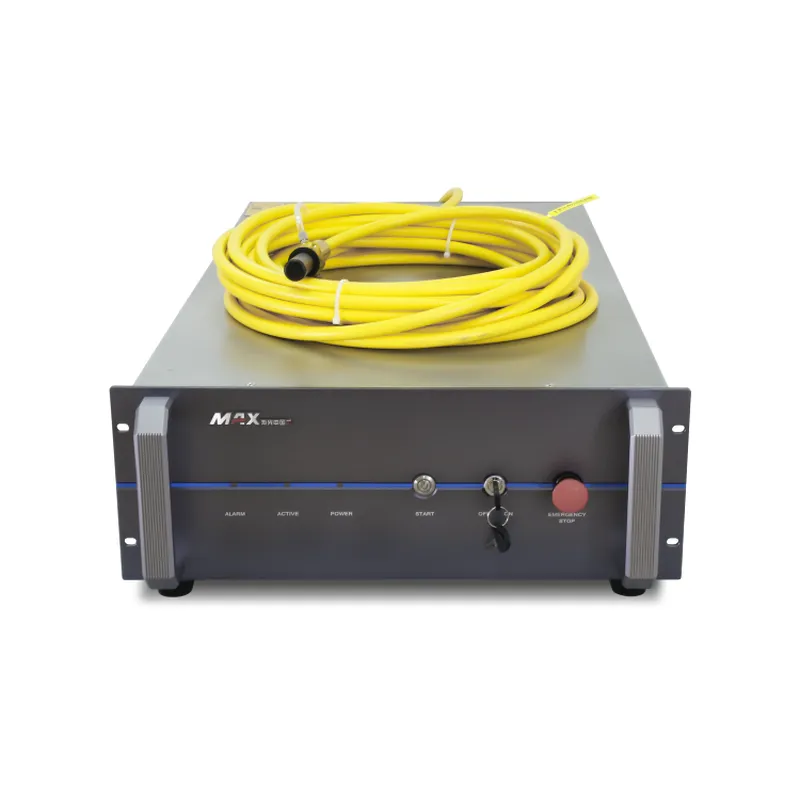

Front Panel Description

ITEMS	FUNCTION DESCRIPTION
(OFF ON) Key Switch	Power switch of laser
(EMERGENCY STOP) Emergency Stop Switch	Emergency stop
(START) Start Switch	Start laser (on-off signal of hardware)
ALARM	Abnormal situation light of laser
ACTIVE	Normal situation light of laser
POWER	Power light of laser

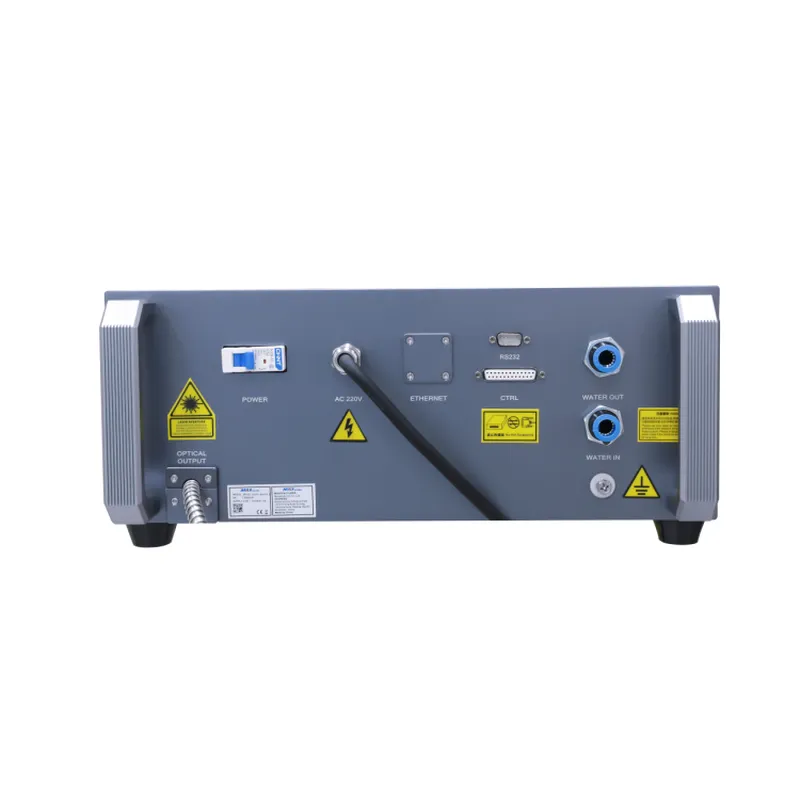

Back Panel Description

ITEMS	FUNCTION DESCRIPTION
CTRL	External control connector
RS232	RS232 connector(Equipped with some models)
AC220	220VAC power input
POWER	220V AC switch
WATER OUT	Water cooling output port
WATER IN	Water cooling input port
OPTICAL OUTPUT	Laser output connector
ETHERNET	Ethernet port (available on some models)
